Electric Patient Hoist Transfer Lift, Multi‑Function Home Nursing Lifter With Walking‑Aid Armrest
Ekoark Health electric patient hoist lift is a professional home‑care mobility transfer device, designed to help caregivers safely lift and transfer bed‑ridden, paralyzed, elderly and mobility‑impaired patients. It greatly reduces caregiver labor burden and back‑injury risk.

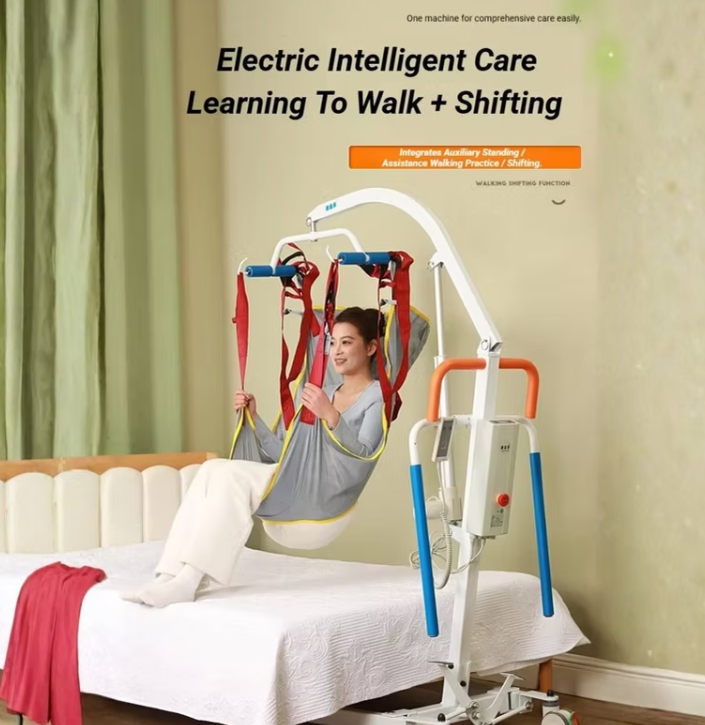

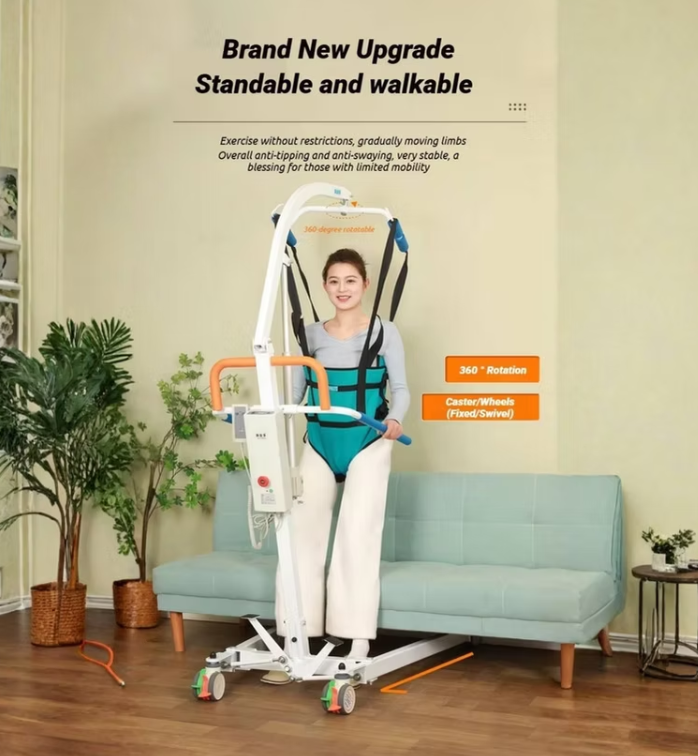

This upgraded model comes with quick‑release walking‑aid armrest, which allows patients to hold on and complete walking rehabilitation exercise during transfer. The armrest can be quickly detached when not needed for flexible usage.
Powered by reliable 4VDC electric motor with 6000N lifting force. Anti‑pinch safety protection works at the lowest lifting position. It descends safely under load, and moves down slowly with no‑load condition to avoid sudden dropping accidents. Built‑in rechargeable battery supports over 50 lifting cycles after a full 8‑hour charge. Real‑time battery indicator: green for full power, yellow low‑voltage warning. Hanging‑type controller is easy to install and remove, with an emergency‑stop button for instant safety cut‑off.
The heavy‑duty patient sling is breathable, waterproof and supports max load up to 200KG, safe enough for shower transfers. The base frame can be easily expanded into stable splayed shape by one‑foot pedal, and folded back by reverse‑step operation, delivering outstanding stability during lifting. 360° rotatable lifting boom, combined with universal and directional brake wheels, makes steering and patient positioning flexible.

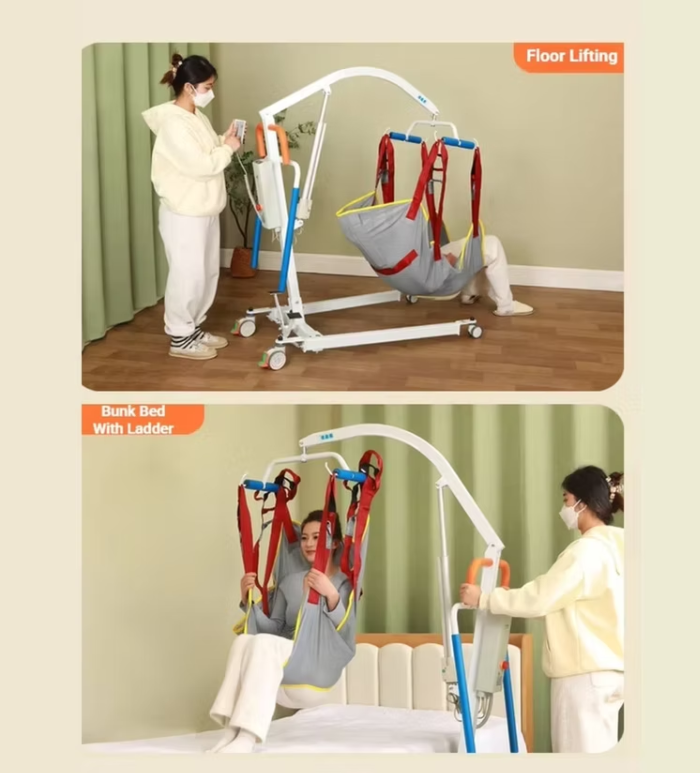

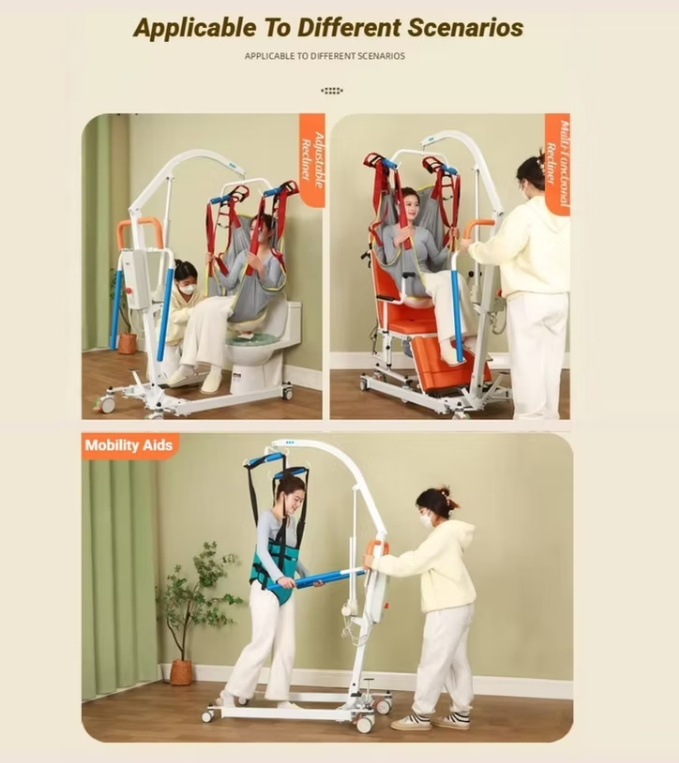

Multi‑scene applications: patient transfer between bed, sofa, wheelchair and toilet, overhead hoist lifting, shower bathing assistance and walking rehabilitation training. Ideal for home nursing, hospitals, rehabilitation centers and nursing homes.
Product Specification Table
| Item | Parameter |
|---|---|

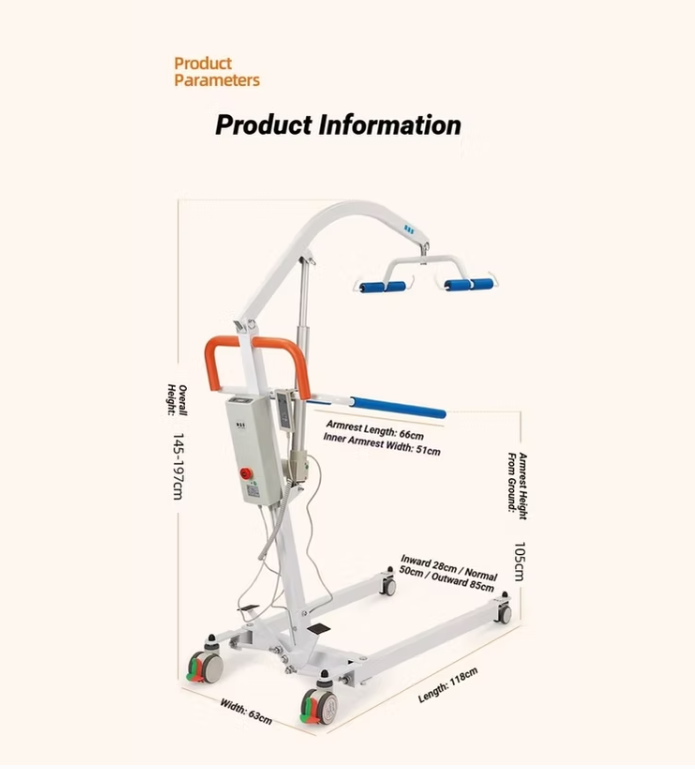

| Overall Dimension | L120cm × W62cm × H195cm |
| Motor | 4VDC, 6000N lifting force |
| Safety Feature | Anti‑pinch protection, emergency‑stop button |
| Battery | Lead-acid battery, 12V, 3A. Rechargeable, 8‑hour charging time, ≥50 cycles per full charge |
| Battery Indicator | Green(full), Yellow(low‑voltage warning alarm) |
| Controller | Hang‑on quick‑detachable hand controller |
| Patient Sling | Breathable & waterproof, Max load: 200KG, shower‑available |
| Base Frame | Foot‑pedal expandable & fold‑out splayed stable base |
| Upgraded Accessory | Quick‑release walking‑aid armrest for rehabilitation walking exercise |
| Wheels | Directional & universal brake casters |
| Lifting Boom | 360‑degree rotatable |
Key Features (Bullet‑Points)

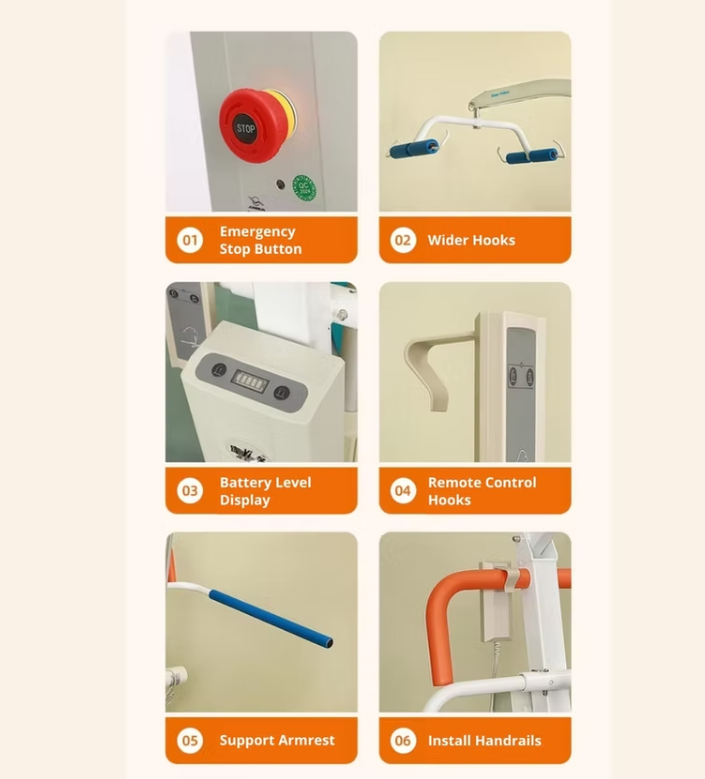

✅ Upgraded quick‑detachable walking‑aid armrest for patient walking rehabilitation training
✅ Powerful 4VDC 6000N electric motor, anti‑pinch safety protection
✅ Rechargeable battery, more than 50 lifting cycles on one full charge
✅ Visual battery level indicator with low‑voltage warning alarm
✅ Emergency‑stop button & hanging detachable hand controller
✅ Breathable waterproof sling, 200KG weight capacity, suitable for shower transfer
✅ Foot‑pedal operated expandable stable base frame
✅ 360° rotatable lifting boom, flexible universal brake wheels
✅ Multi‑purpose: bed‑ridden patient transfer, bathing, toileting & walking training
✅ Perfect for home nursing, hospital and elderly care institutions
